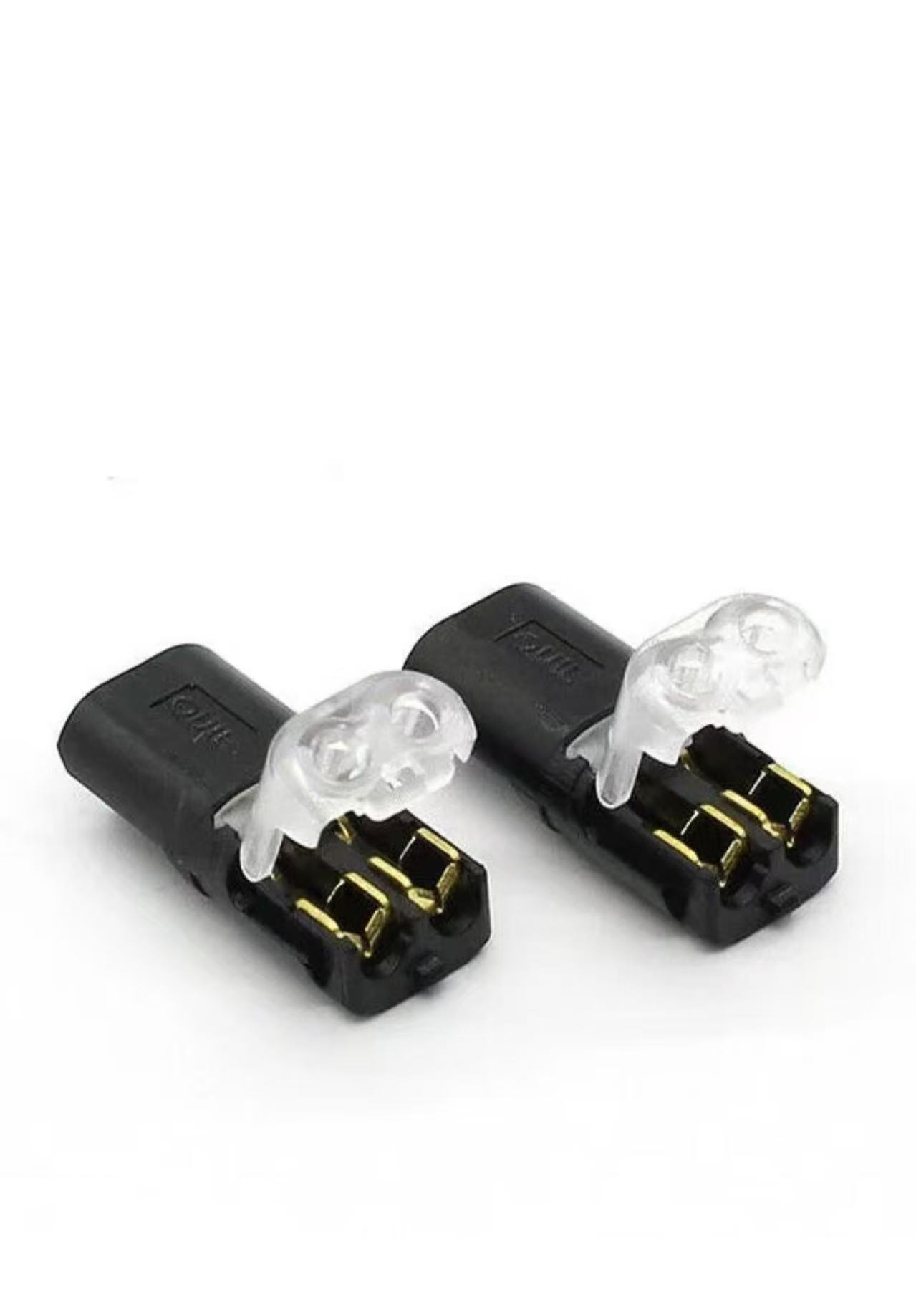

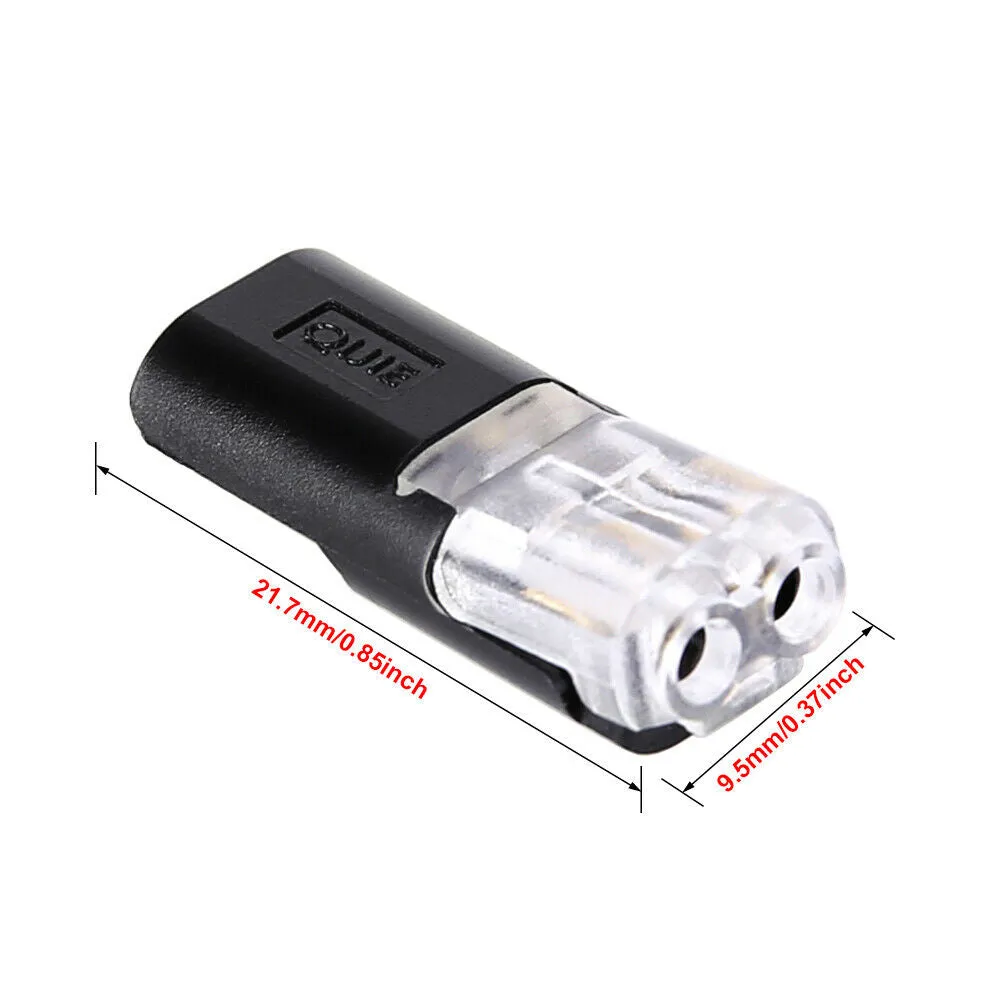

WIRE QUICK CONNECTOR

Item Name: SE-W-W

Wire to Wire Connector/Joiner:

Product Features & Specifications

• No soldering required
• No need to strip insulation before connection
• No twisting or taping of conductors needed
• Fully enclosed connection – conductor is not exposed
• Made from flame-retardant material (UL94 V-0 rated)
• Dust-proof design
• Easy to use and time-saving
• Reusable connector

Technical Specifications

• Colour (Top/Bottom): Red / Black
• Standard Compliance: IEC/EN 60664-1
• Overvoltage Category: EN III
• Rated Voltage: 5–24 V
• Rated Current: 5 A
• Minimum Cross-sectional Area: 0.34 – 0.75 mm²
• Compatible Wire Types: Solid and stranded wires (22–18 AWG)
• Conductor Material: High-precision copper (Cu)
• Operating Temperature: -35°C to +80°C
